HantekScope v1.0 · Windows
A free oscilloscope program for the Hantek 1008A 8-channel USB scope — an open alternative to ATS eScope Elite 8.
⬇ Download Installer
HantekScope-Setup.exe · Windows · no Python needed
⬇ Source & build files
HantekScope-source.zip · for developers
Two quick things after installing:
- Plug in the Hantek 1008A.
- Install a USB driver once with Zadig →
select the Hantek device (USB ID
0783 / 5725) → choose libusb-win32 → Replace Driver. This lets the app talk to the scope.
Features

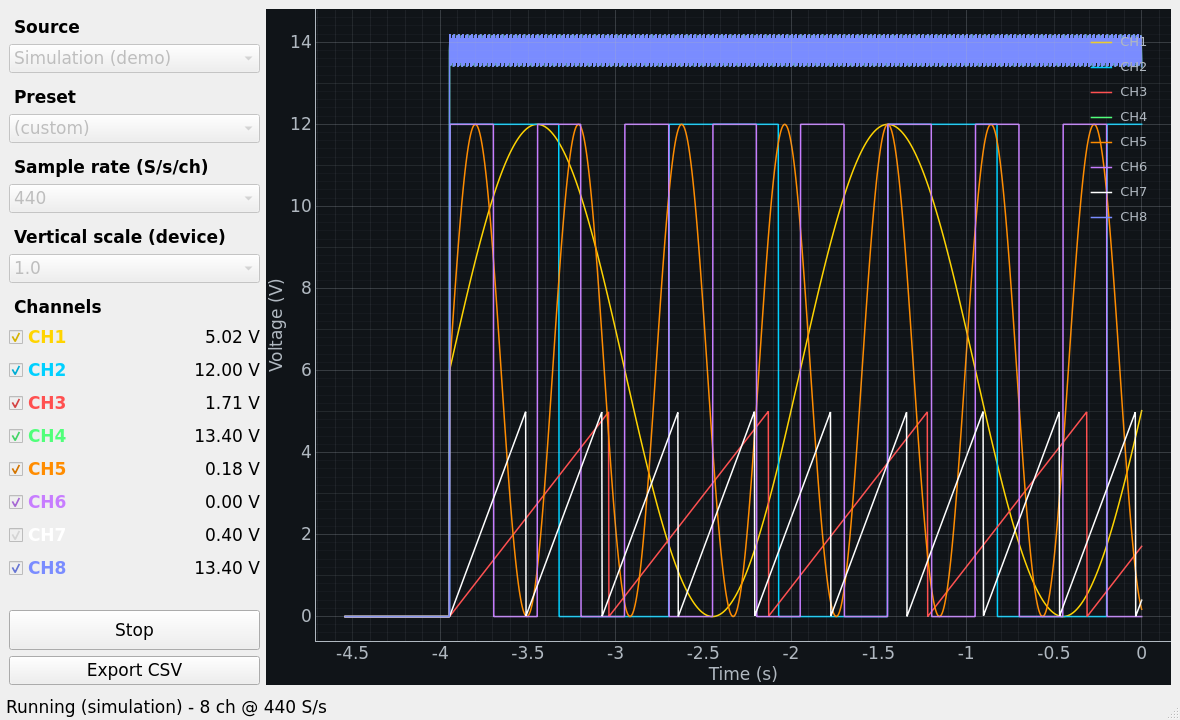

- Live 8-channel waveform display
- Per-channel on/off with live voltage readouts
- Selectable sample rate & vertical scale
- One-click automotive presets (charging system, ignition/injector…)
- CSV export · built-in demo mode (try it with no hardware)
Good to know
The underlying USB protocol was reverse-engineered against the Hantek 1008C; the 1008A is nearly identical but a command or two may need tweaking. If the live display errors out, the built-in Simulation mode still works so you can verify the app itself.
